Volcano Nozzles

Choose the right material:

ObXidian

With a wear resistance that is orders of magnitude higher than any other E3D nozzle, ObXidian is really hard. Several orders of magnitude harder than Nozzle X and any other generic hardened steel nozzle.

This is achieved by pairing a tool steel insert with our new E3DLC™ coating. This specially formulated coating also embeds non-stick properties into the Nozzle itself. Meaning considerably less plastic build-up around the Nozzle.

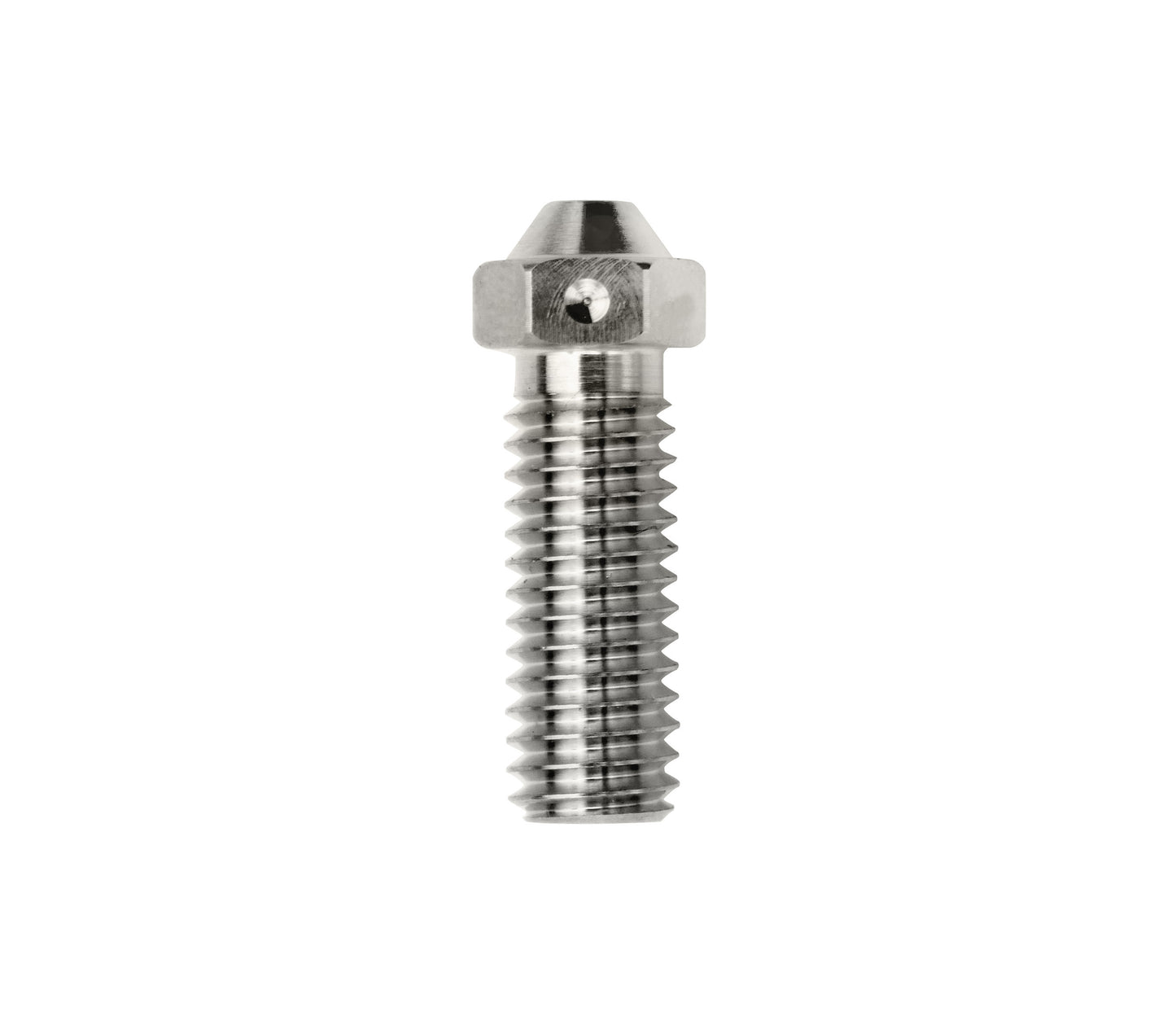

Nozzle X is the last nozzle your 3D printer will ever need. Made from a hardened tool-steel base, they are then Nickel plated to maintain hardness at elevated temperatures, and have a WS2 coating applied to provide the nozzle with reduced stick properties. Rated to a maximum temperature of 500°C, Nozzle X prints every printable material*, from PLA all the way to Carbon Fibre-filled PEEK without wearing.

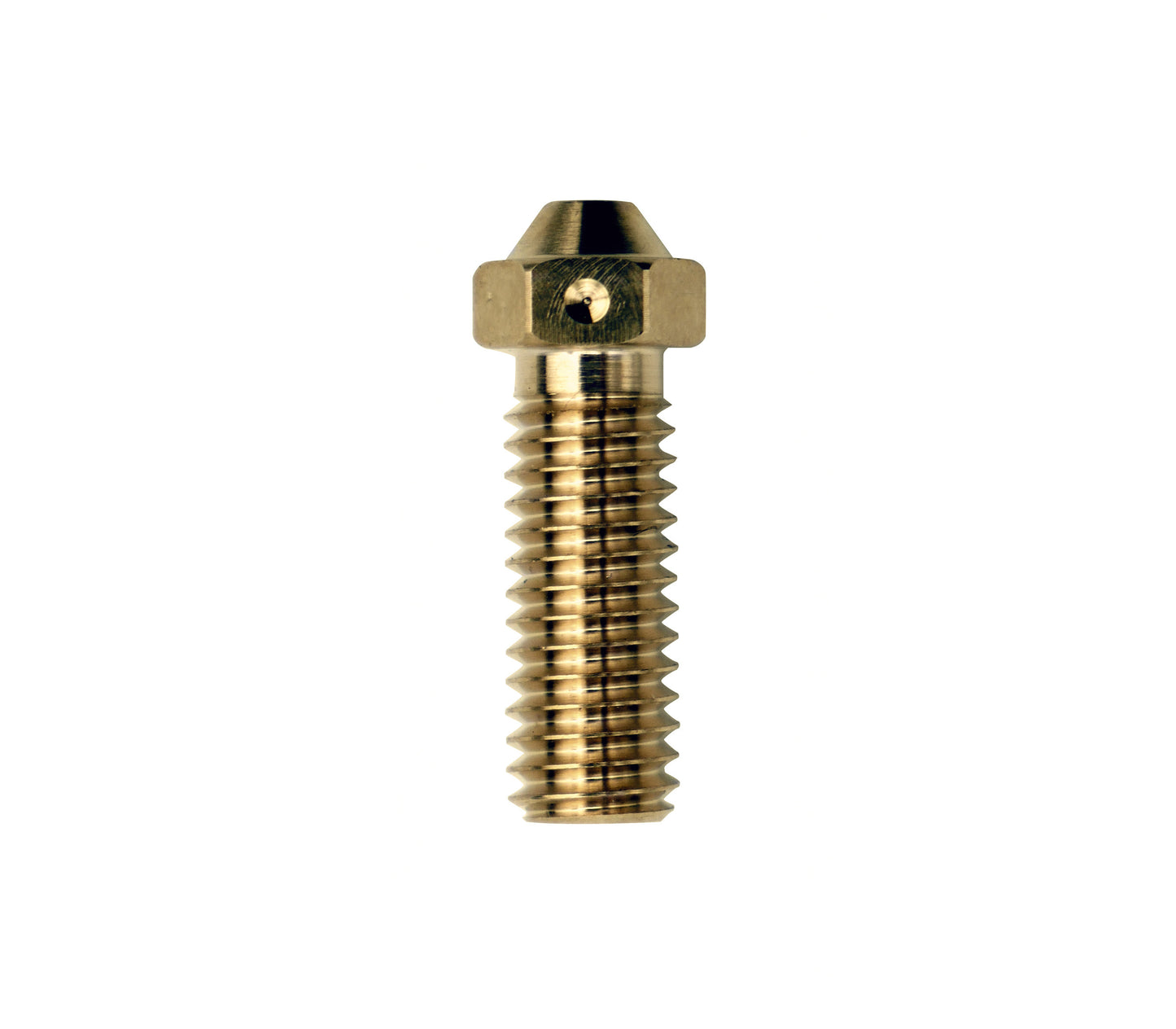

Brass nozzles, featuring E3D’s signature internal geometry, have optimal thermal properties for everyday printing, providing smooth layers for standard non-abrasive applications. Rated to a max temperature of 300°C.

Our unique plated copper nozzles are suitable for high-temperature, non-abrasive applications. The nickel plating provides a reduced-stick surface, ideal for situations where temperatures are too hot for a silicone sock. Rated to a maximum temperature of 500°C.

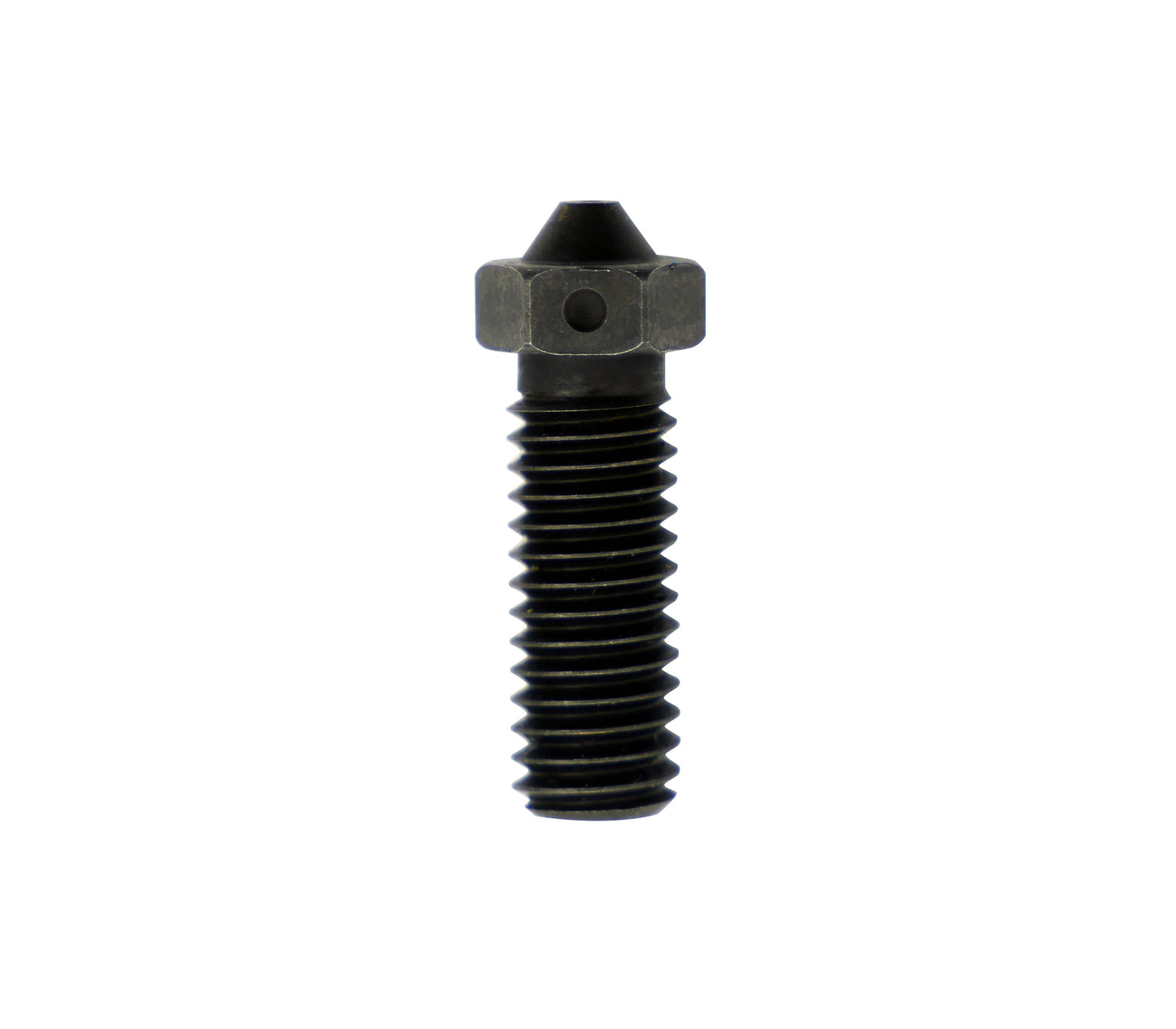

Hardened steel nozzles are good utility nozzles, suitable for abrasive filaments such as wood fills, glitter fills and metal fills. Even glow-in-the-dark filaments will abrade brass so our Hardened Steel nozzles are a great, lower-cost option when you can’t stretch to a Nozzle X. Rated to a maximum temperature of 500°C. Please note this nozzle is not suitable for printing abrasive filaments at temperatures above 350°C.

Please note:

Volcano nozzles are not compatible with the V6, SuperVolcano or Cyclops heater blocks.
