Revo Nozzle

DATASHEET

Warnings

• During use and cooldown, there is a potential to burn your hands.
• Your HotEnd and printer are your responsibility. We cannot be held responsible for damages caused by our products use, misuse or abuse.
• Revo nozzles are to be fastened by hand without the use of tools
• Revo Nozzles must be fastened at room temperature to avoid burn injuries.

Summary

• Compatible with: Revo Hemera XS, Revo Hemera, Revo Micro, Revo Six, Revo Voron, Revo CR, Revo Prusa MK3, Revo Prusa Mini, Revo Micro LGX, Revo Biqu H2V2, Revo Microswiss NG
• Mass: 8g
• Filament diameter: 1.75mm

Volume and Dimensions

Standard GeometryHigh Flow GeometryBelt Nozzle Geometry

Nozzle Identification

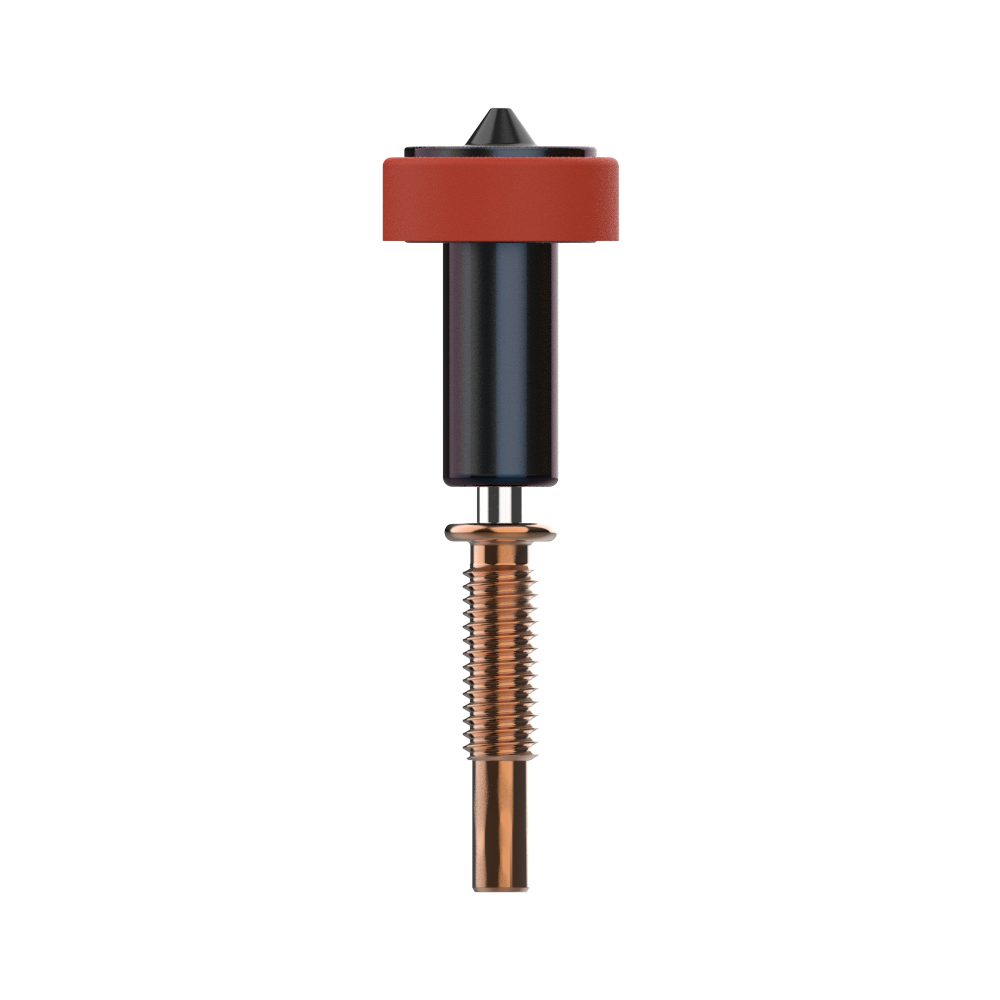

BrassObXidianBrass High FlowObXidian High FlowHigh TemperatureHigh Temperature AbrasiveHigh Flow HIgh Temperature Abrasive

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.15	Pink	300	No	Brass Yellow
0.25	Yellow	300	No	Brass Yellow
0.40	Red	300	No	Brass Yellow
0.60	Blue	300	No	Brass Yellow
0.80	Green	300	No	Brass Yellow

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.25	Yellow	300	Yes	Iridescent Black
0.40	Red	300	Yes	Iridescent Black
0.60	Blue	300	Yes	Iridescent Black
0.80	Green	300	Yes	Iridescent Black

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.40	Red	300	No	Brass Yellow
0.60	Blue	300	No	Brass Yellow
0.80	Green	300	No	Brass Yellow
1.00	Black	300	No	Brass Yellow
1.20	Purple	300	No	Brass Yellow
1.40	Orange	300	No	Brass Yellow

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.40	Red	300	Yes	Iridescent Black
0.60	Blue	300	Yes	Iridescent Black
0.80	Green	300	Yes	Iridescent Black
1.00	Black	300	Yes	Iridescent Black
1.20	Purple	300	Yes	Iridescent Black
1.40	Orange	300	Yes	Iridescent Black

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.40	N/A	500	No	Dull Grey
0.60	N/A	500	No	Dull Grey
0.80	N/A	500	No	Dull Grey

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.25	N/A	500	Yes	Dull Grey
0.40	N/A	500	Yes	Dull Grey
0.60	N/A	500	Yes	Dull Grey
0.80	N/A	500	Yes	Dull Grey

Diameter (mm)	Sock colour	Max temperature °C	Abrasion resistant?	Nozzle Colour
0.40	Red	500	Yes	Dull Grey
0.60	Blue	500	Yes	Dull Grey
0.80	Green	500	Yes	Dull Grey
1.00	Black	500	Yes	Dull Grey
1.20	Purple	500	Yes	Dull Grey
1.40	Orange	500	Yes	Dull Grey

Exploded View

• Revo Nozzle
• Revo Nozzle sock

Changelog

Edition 8

Approved: , Published: , Notes: HF Nozzles added

Edition 7

Approved: DR 03/03/23, Published: 03/03/23, Notes: Nozzle drawing updated

Edition 6

Approved: DR 04/10/22, Published: 04/10/22, Notes: ObXidian table added

Edition 5

Approved: RY 19/07/22, Published: 19/07/22, Notes: Migrated to Zendesk and added illustration to identification section

Edition 4

Approved: RY 23/03/22, Published: 23/03/22, Notes: Added total length tolerance and removed flow rate

Edition 3

Approved: DR 07/12/21, Published: 07/12/21, Notes: Flow rate units changed to 10mm³/sec

Edition 2

Approved: RY 13/10/21, Published: 12/10/21, Notes: Revo Thread renamed Revo Micro

Edition 1

Approved: RY 17/09/21, Published: 17/09/21

Compliance
