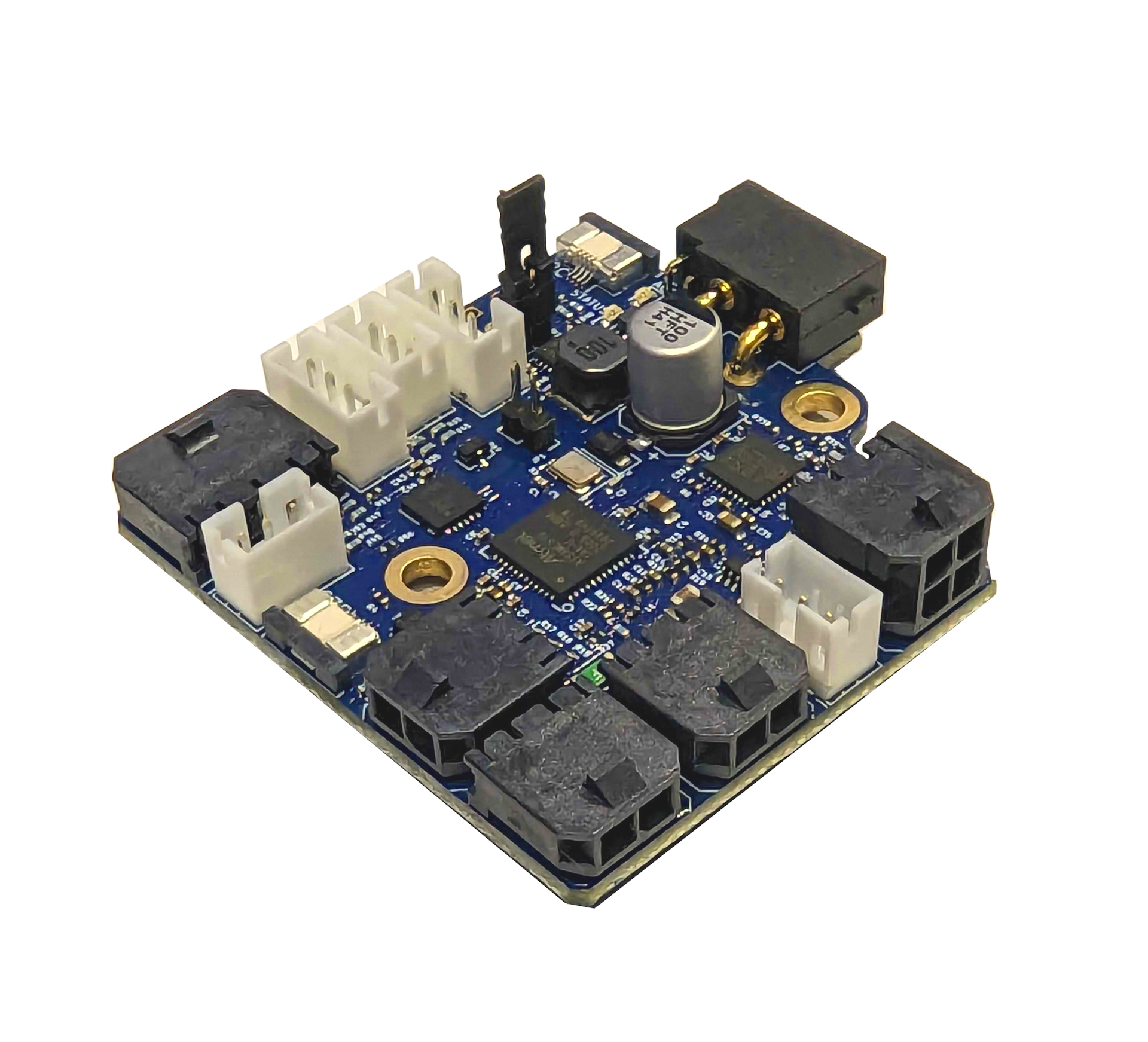

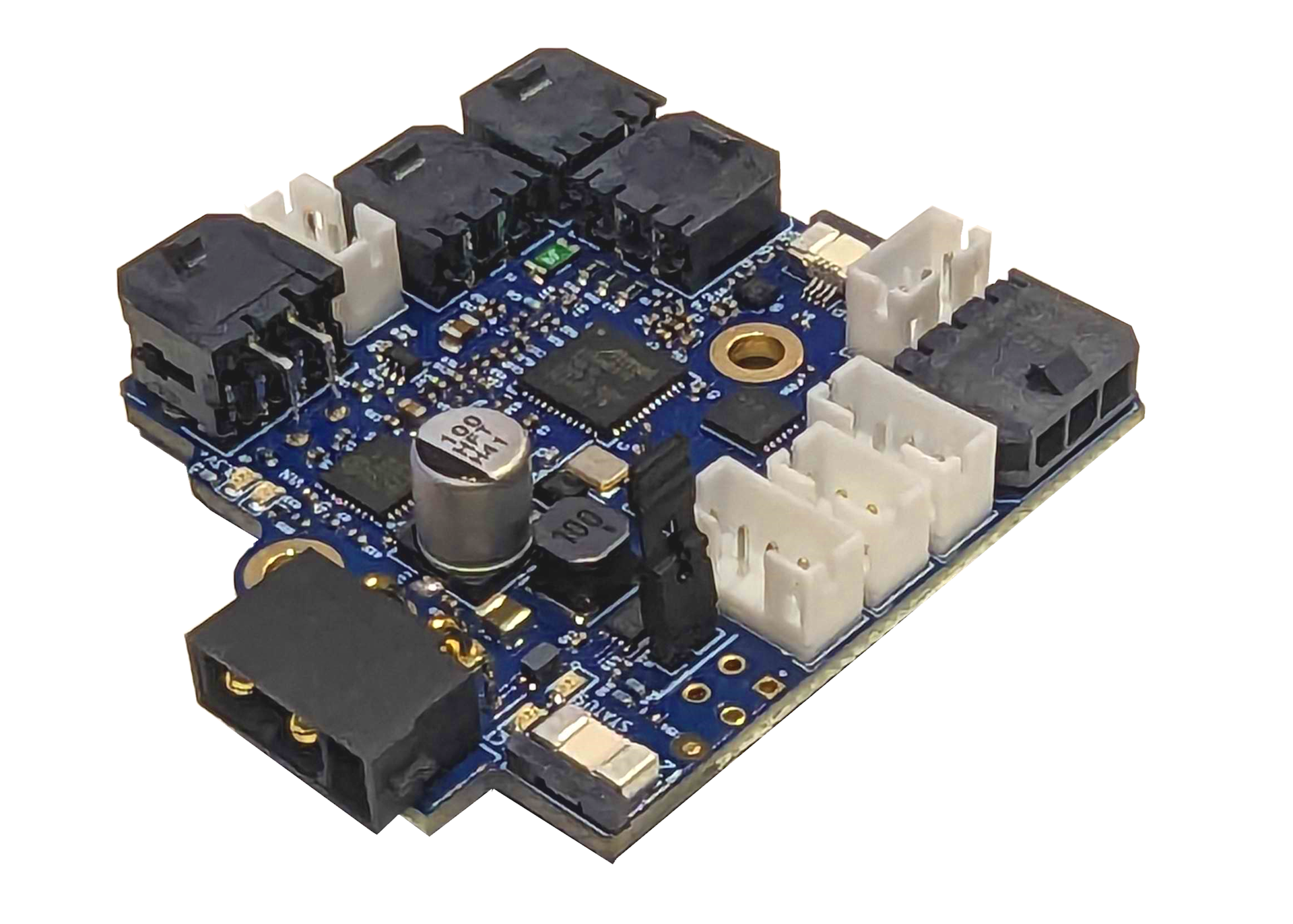

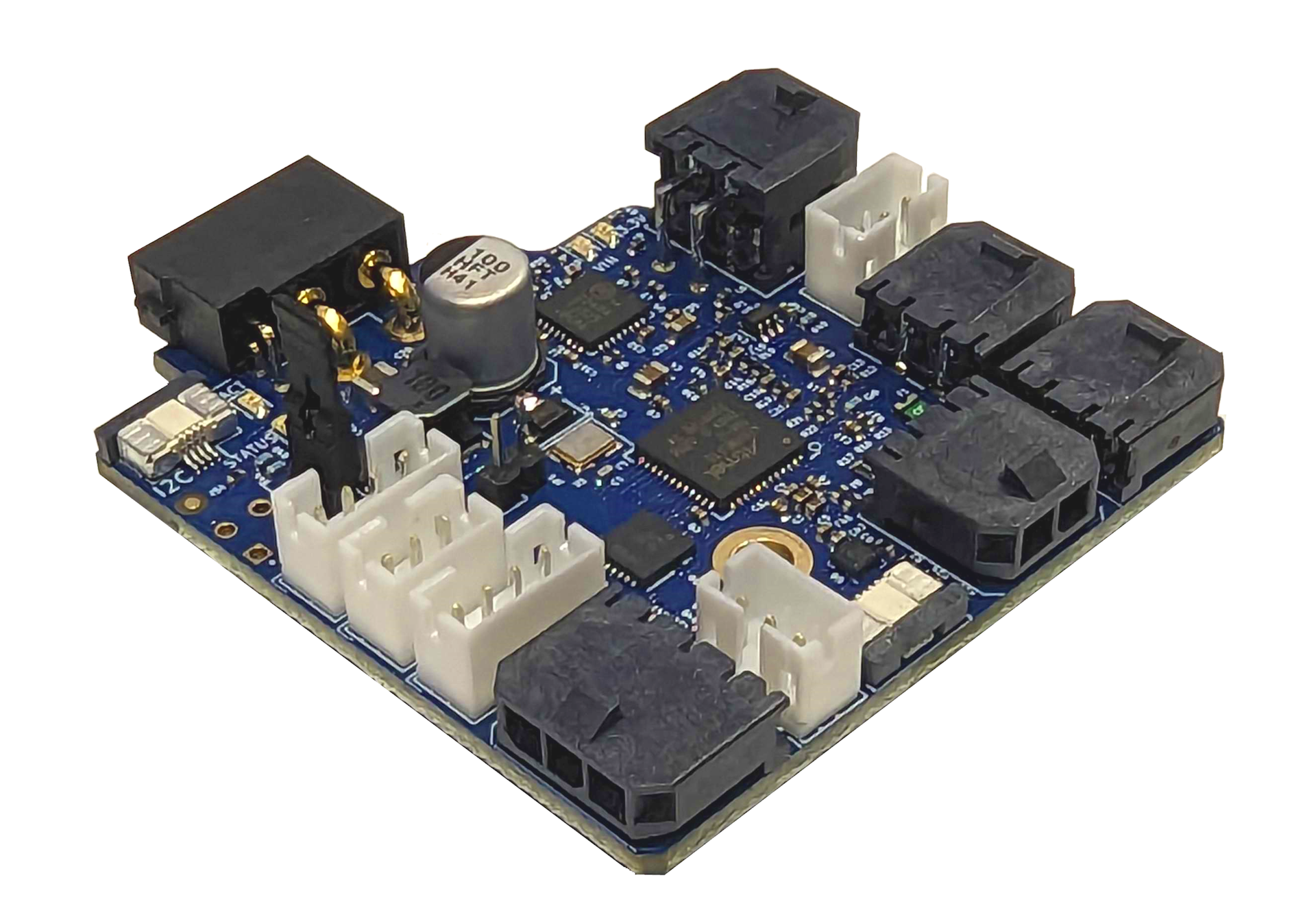

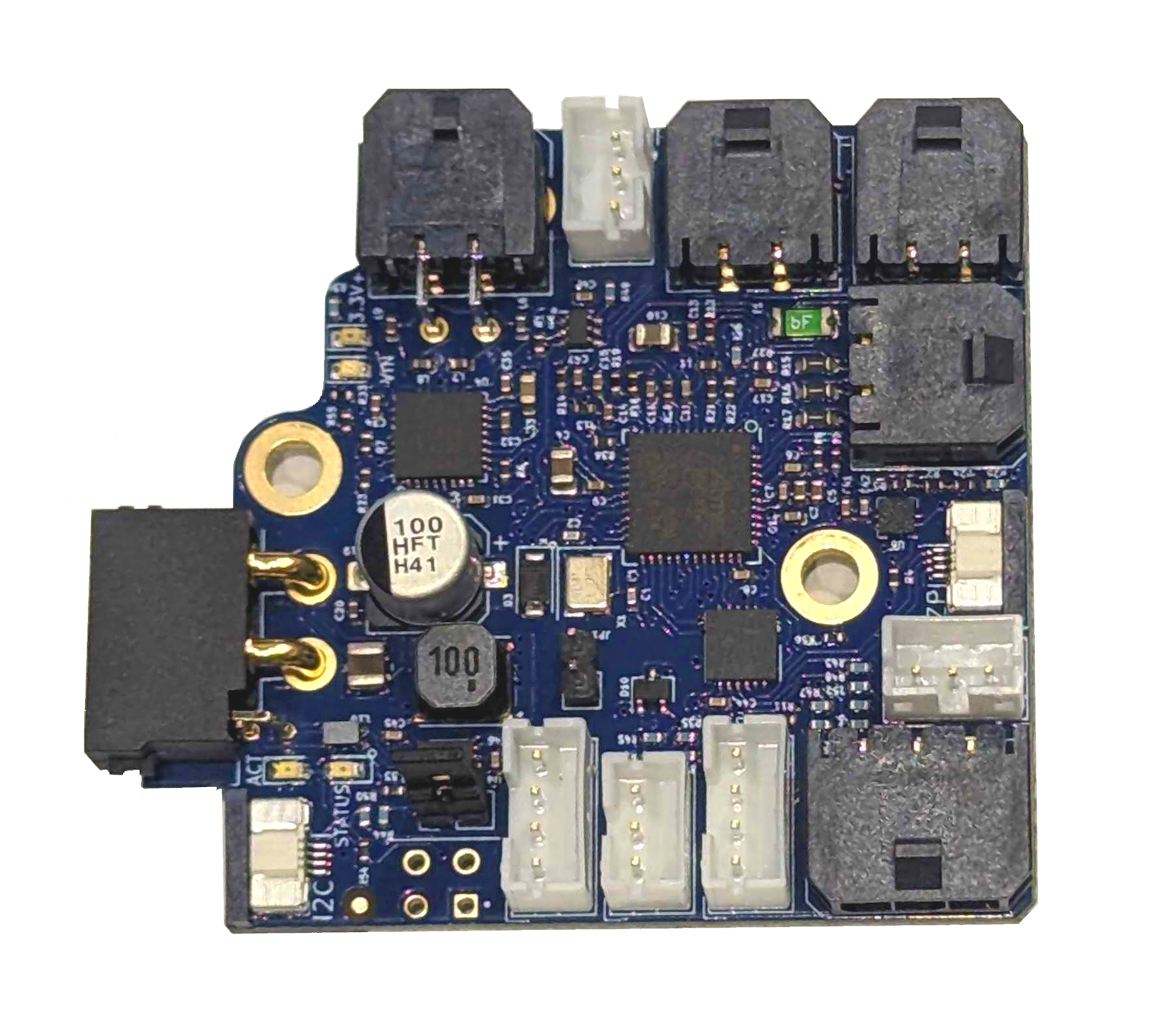

Duet 3 ToolBoard for Roto Extruder

Duet 3 ToolBoard for Roto Extruder


Low stock

Regular price £69.00 GBP
Regular price Sale price £69.00 GBP
Sale Sold out
Taxes & Shipping calculated at checkout.

The Duet 3 Roto Toolboard is designed to integrate easily with the E3D Revo Roto extruder and the Revo hotend heaters and temperature sensors. The following connect using the E3D supplied connectors for easy wiring: extruder motor, a two or three wire heatsink fan, the Revo heater and thermistor and the secondary temperature sensor. In addition a 2,3,or 4 wire part cooling fan, 4 IO ports for endstops, filament monitor and Z probe, a neopixel header, and a Duet 3 scanning Z probe coil can be connected.

This reduces the number of wires needed to two power wires and a twisted pair for the CAN-FD bus.

Processor   ATSAME51G19A
Processor features  32-bit, 120MHz ARM Cortex M4F
Networking/Comms   CAN-FD interconnect to Duet 3 CAN-FD bus
On-board stepper driver  1 x TMC2240
Stepper driver features   Up to 1A peak current, micro-step interpolation from any setting to x256, stall detection (Note further thermal testing may allow higher extruder current for Extruders other than the Revo Roto which should not exceed 600mA current)
High current outputs   1 x 3.4A, VIN voltage only (80W at 24V)
 Thermistor/PT1000 inputs   3 x inputs, 2 optimised for 100K thermistors and PT1000 sensors, 1 used for the coil temperature on the SZP coil
 Medium current outputs   1 x 4-pin (VIN voltage - designed for part cooling using 2,3 or 4 pin fans) and 1 x 3-pin (5V compatible with the Roto heatsink cooling fan using 2 or 3 pin fans). Both are PWM-controlled output with tacho input
 Inputs/Outputs   3 x on-board I/O connectors for endstop, switches, filament monitor, Z probe. 1 x footprint for a switch or optical proximity sensor
 Accelerometer   Integrated LIS2DW accelerometer
Inductive Sensor   Integrated LDC1612 inductive sensor for scanning Z probe
 Power monitoring  VIN voltage reporting
