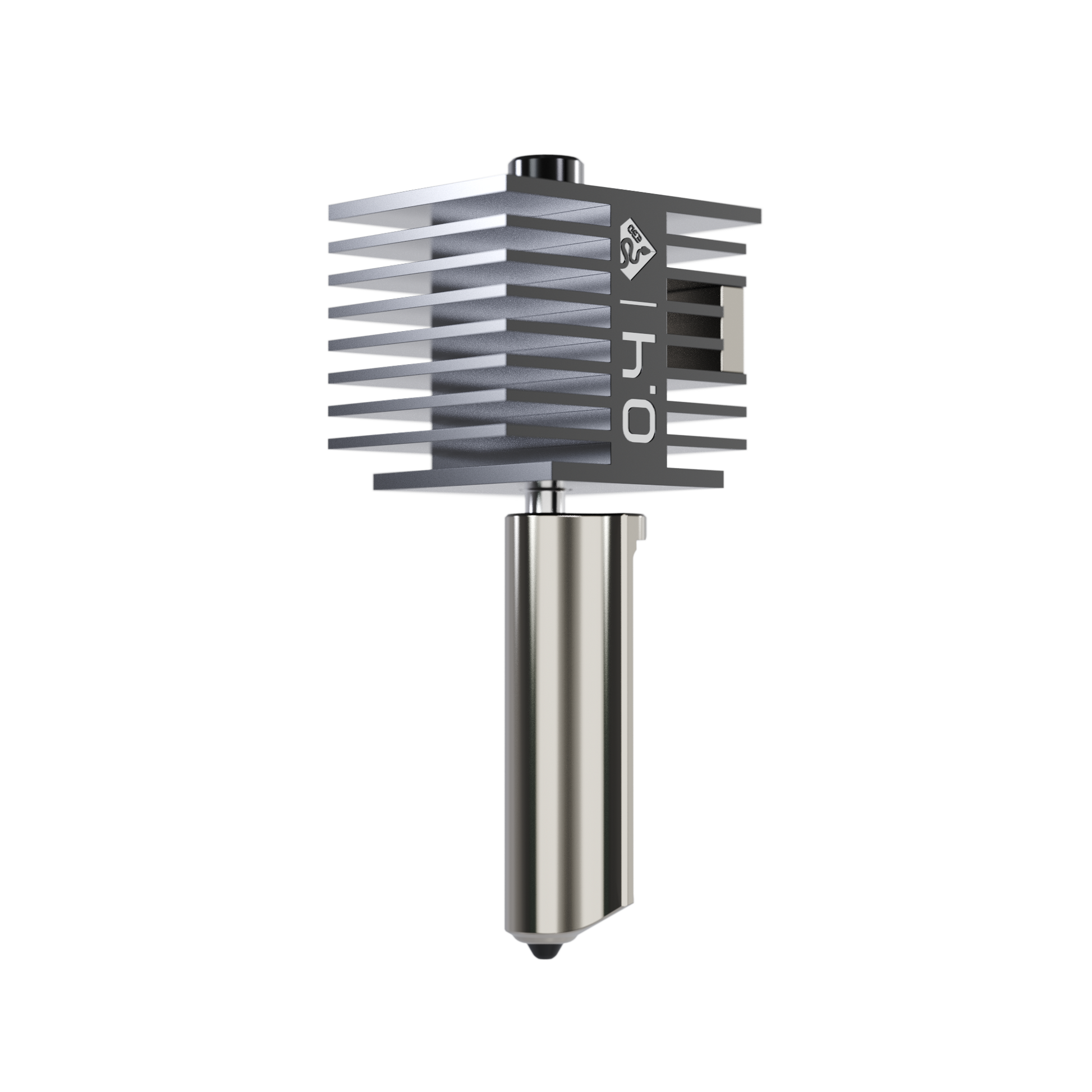

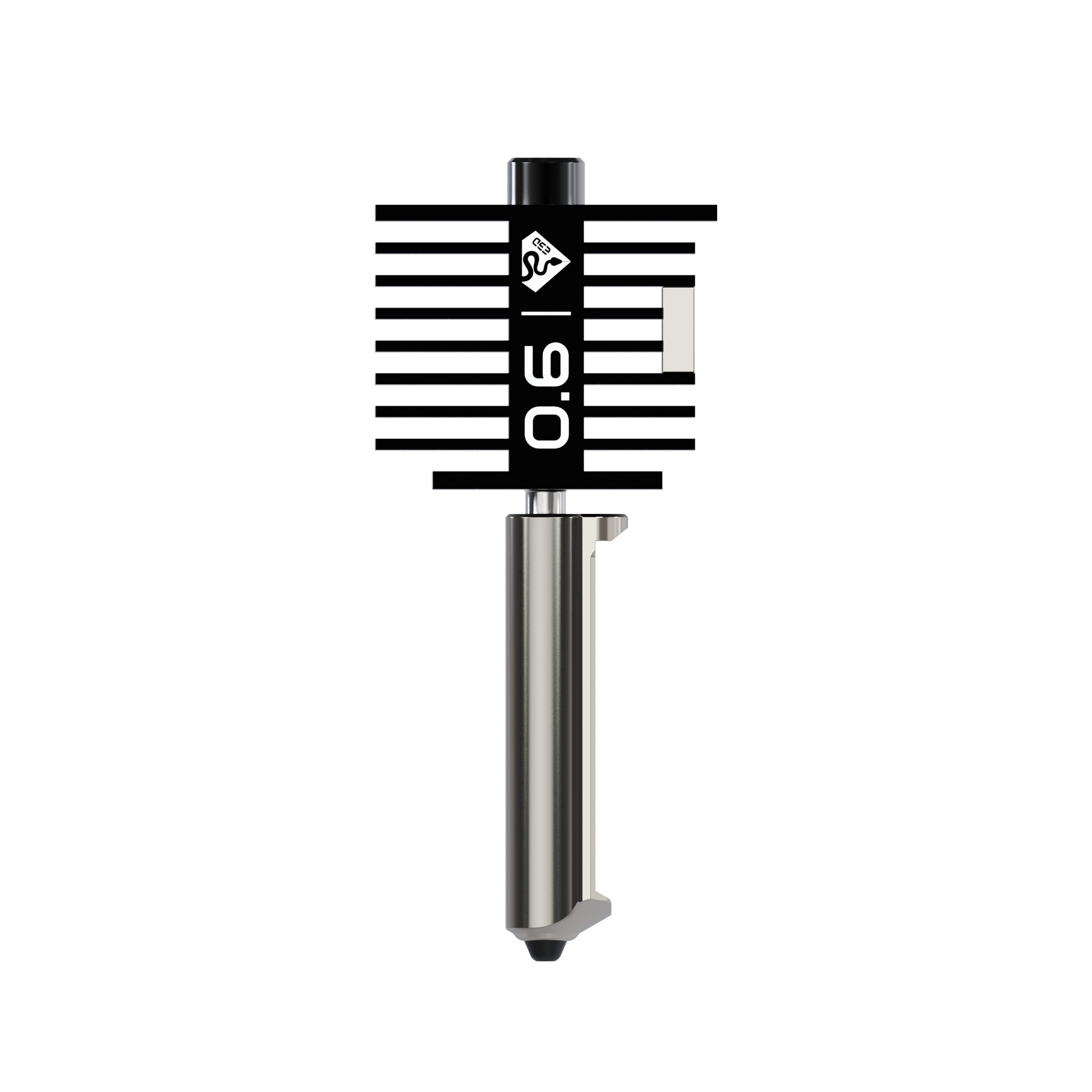

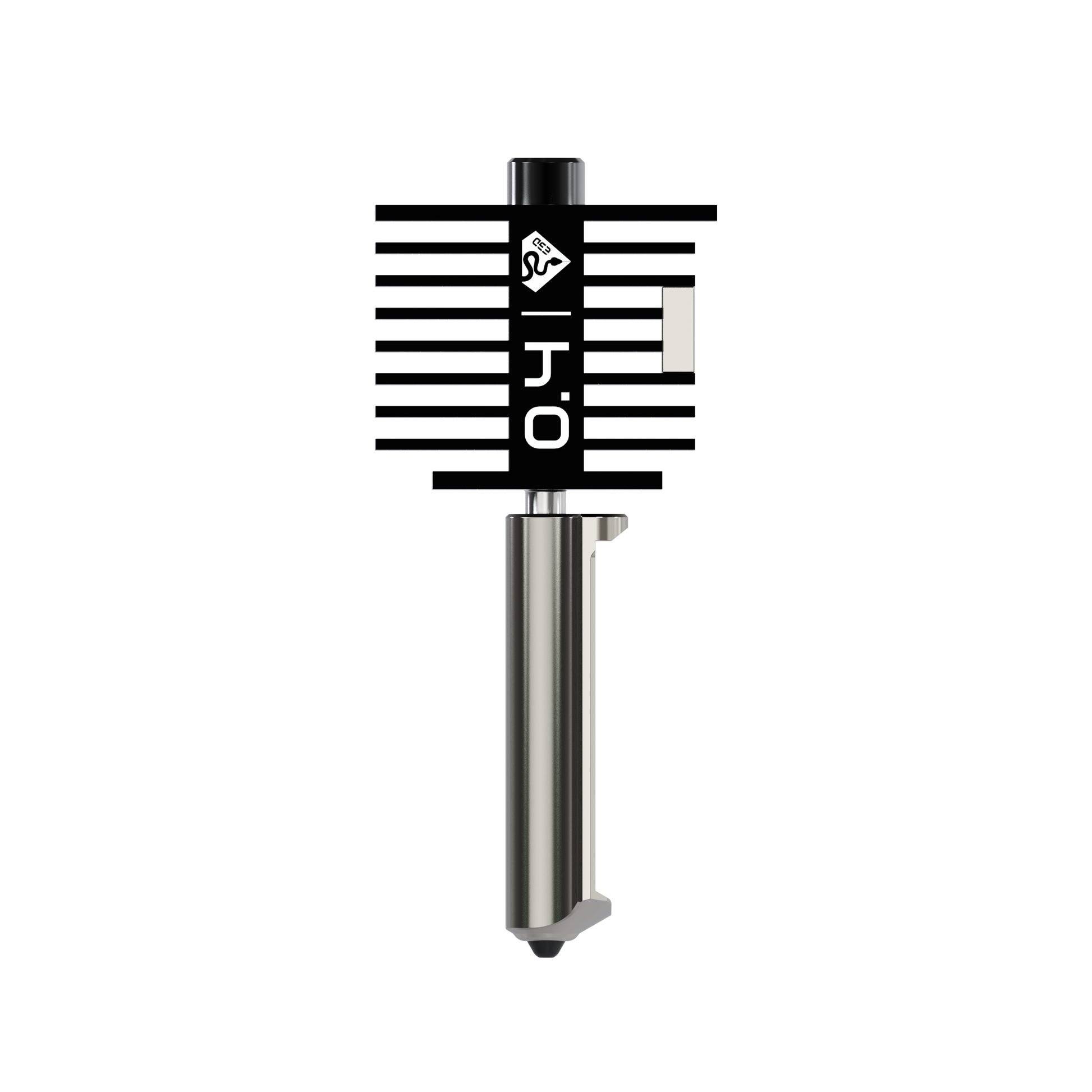

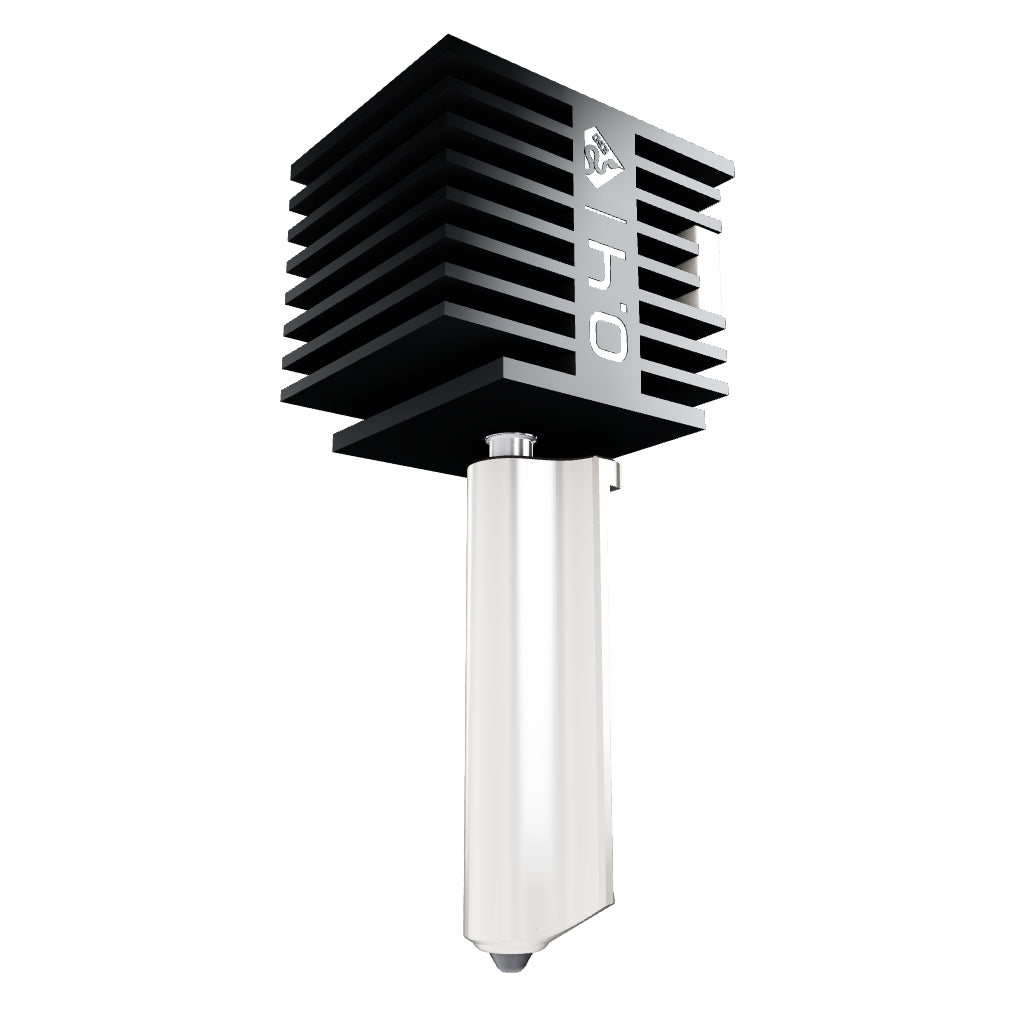

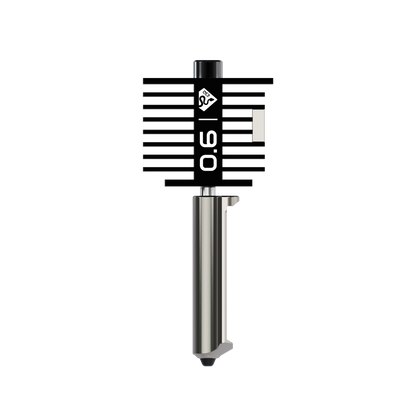

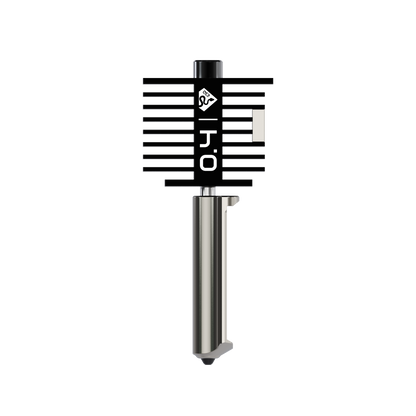

DiamondBack HotEnd for Bambu Lab A1 & A1 Mini

DiamondBack HotEnd for Bambu Lab A1 & A1 Mini

Key Features
  • Print with Any Filament – tackle the toughest metal, ceramic, and fibre-filled filaments with ease.
  • Guaranteed Longevity – Upgrade with peace of mind that you’ll never need to change out another nozzle.
  • Print with Precision – Engineered for smoother top layers, sharper details, and consistent extrusion.
  • Stronger, Better Prints – Experience exceptional thermal conductivity that improves layer adhesion for tougher parts.
  • Effortless Installation – A drop-in upgrade for your existing HotEnd, no modifications needed.

Nozzle Diameter
Regular price £99.50 GBP
Regular price Sale price £99.50 GBP
Sale Sold out
Taxes & Shipping calculated at checkout.
  • Friendly Support
  • 6 Month Guarantee
  • Fast Global Shipping
SKU: BAMBU-DIAMOND-A1-AS-0400-SPK
Country of Origin: GB
View full details
  • 0.40mm
  • 0.60mm

Description

These premium HotEnds are an official collaboration between E3D, DiamondBack, and Bambu Lab - bringing the most extreme abrasion resistance possible for your A1 machine. E3D are very proud to be the only officially approved manufacturer of aftermarket Bambu Lab HotEnds.

Why Choose Diamond?

Thanks to being made from the hardest material on Earth, these Polycrystalline Diamond (PCD) nozzles deliver unmatched wear-resistance and versatility compared to all other options on the market. They are composed of thousands of tiny diamond crystals with a proprietary binder that forms a matrix of crystals joined with diamond-to-diamond bonds.

And what does that mean for you? In essence, with this upgrade you’re getting ultra-durable nozzles that withstand even the toughest 3D printing challenges. You'll be able to print anything on your A1 – from fibre-filled to metal and ceramic filaments – without needing to worry about pesky materials destroying the nozzle. Check out the video below to see how the PCD is made!



Precision Printing

Your prints will benefit from the nozzle’s solid diamond tip which improves precision – making for more aesthetically beautiful prints compared to the stock HotEnd’s output. You heard that right, a SOLID diamond is going to help make your prints as pristine as they can be.

Longevity

The PCD used in these HotEnds significantly extends nozzle life. So once you’ve installed your upgrade you won’t have to worry about getting a new nozzle again. Better for your pocket, and the planet.

Smooth and Strong

The PCD used in the HotEnd also provides best-in-class thermal conductivity which improves interlayer adhesion for stronger prints. And to top it all off the low coefficient of friction combined with a polished tip creates super smooth top layers with an ironing-like effect

Effortless Upgrade

These magnetic HotEnds couldn’t be easier to install. The heater and temperature wires are built into the tool head so all you need to do is unclip the existing HotEnd, slot in the new one and you’re good to go. No physical adjustment to the mount or part-cooling is required.

Buying outside the UK?

Avoid additional charges and lead times by ordering from your local E3D Reseller.

Please note:

  • Some filled materials contain particles that are close to, if not larger than, some of the smaller industry standard nozzle sizes, including up to 0.4mm. Attempting to print such materials through these nozzle sizes significantly increases the risk of a jam. Please check your filament manufacturer’s datasheet for recommended minimum nozzle orifice diameter to ensure that the nozzle/HotEnd you choose is suitable for your use case.
  • Please note, these HotEnds are not compatible with the Bambu Lab H2 Series printers.

Documentation

What's In The Box

  • 1 x Assembled DiamondBack HotEnd for Bambu Lab 0.40 mm or 0.60 mm

Printer Compatibility

  • Bambu Lab A1
  • Bambu Lab A1 Mini

Frequently Asked Questions

Will this void my warranty with Bambu?

No, Bambu Lab have collaborated with E3D throughout the development and has officially approved the use of these HotEnds.

What is the maximum printing temperature of a DiamondBack Bambu Lab HotEnd?

These HotEnds are rated to 320°C.

Do I need to make any changes to the slicer profile after upgrading to a DiamondBack Bambu Lab HotEnd?

No, you can use your current slicer profiles.

Are these HotEnds compatible with the BambuLab H2 Series printers?
No, they are only compatible with the A1 and A1 Mini.

Can a DiamondBack nozzle print any filament?
Yes, the nozzle itself has the ability to print any material. However, please bear in mind that despite using the nozzle you will still be limited by the temperature restrictions of your printer.
