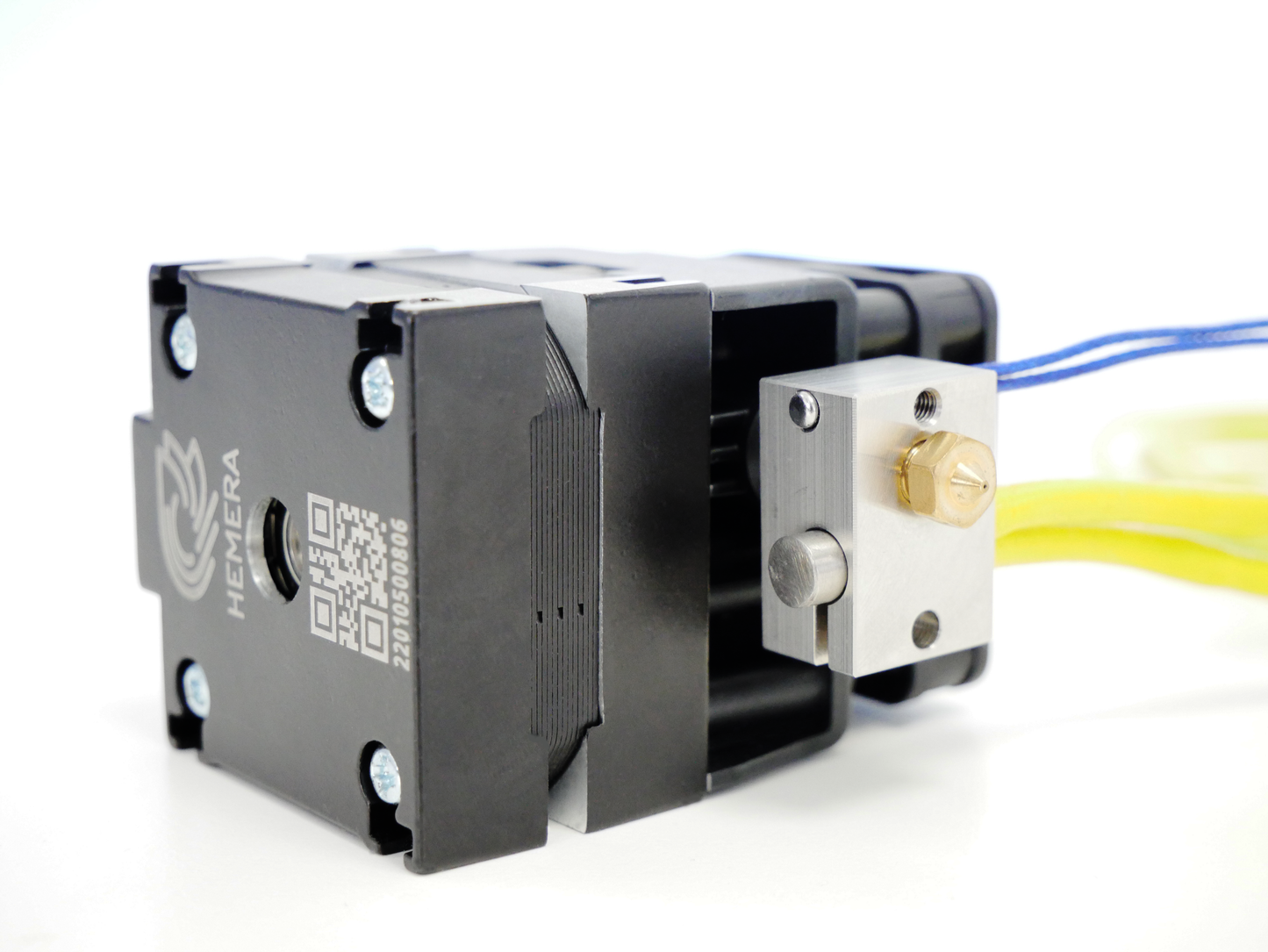

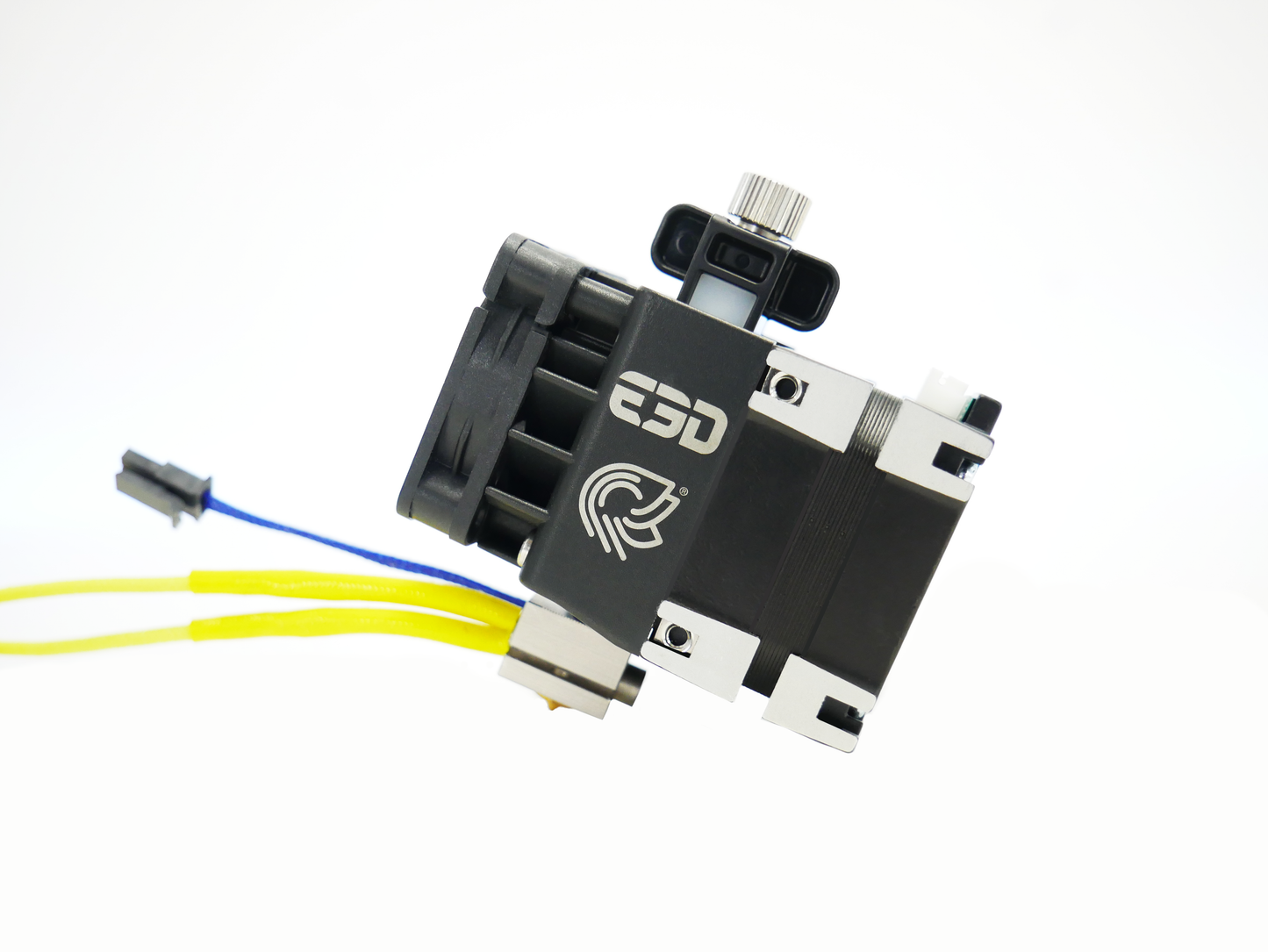

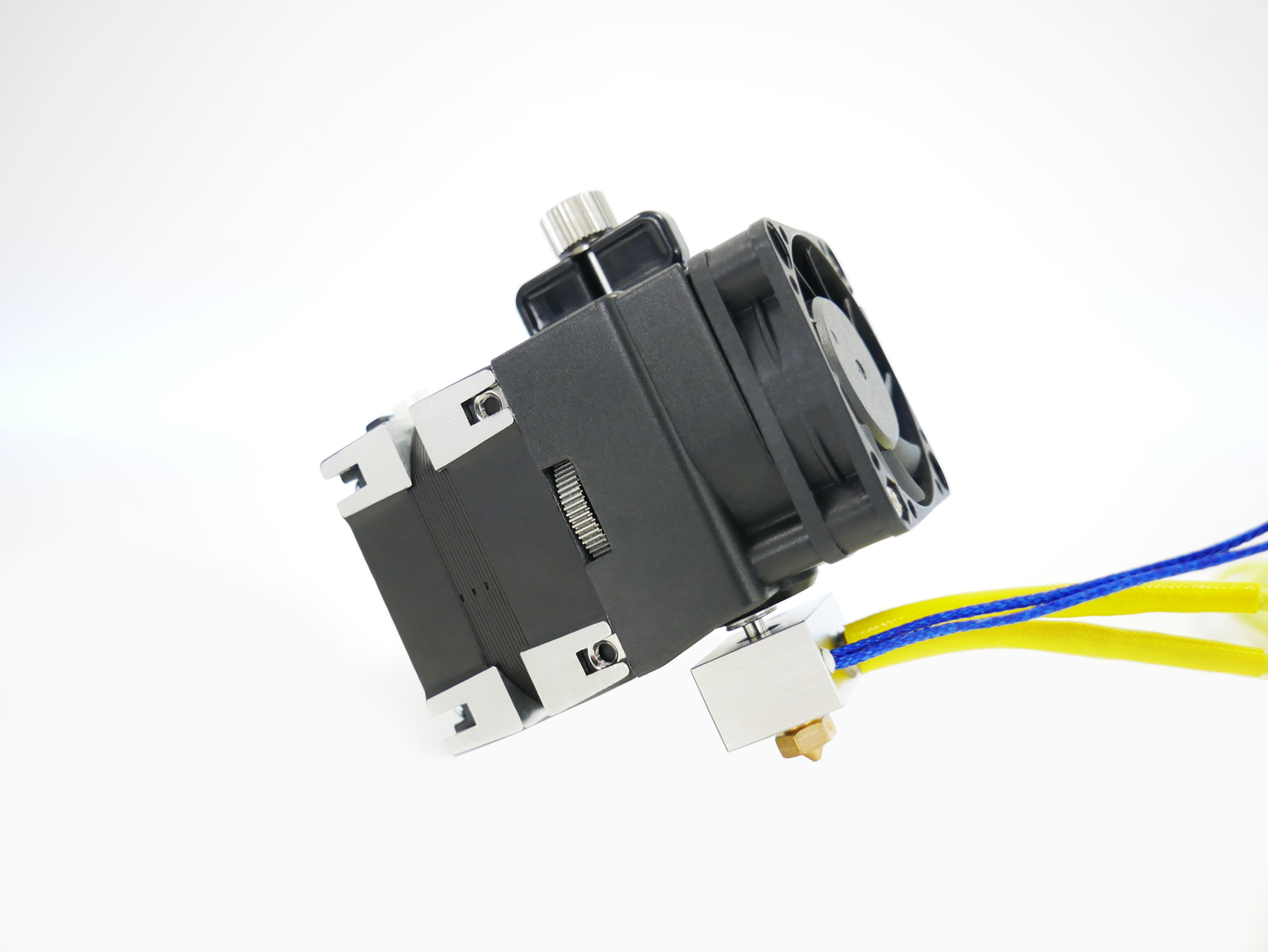

V6 Hemera XS Direct Kit

Shorter and lighter.

V6 Hemera XS is 92g lighter and 11mm shorter than classic Hemera. A custom stepper motor means it can move faster on your 3D printer’s motion system with less inertia than classic Hemera, reducing print artefacts such as ghosting. Its compact size also means it occupies less space inside your 3D printer’s build volume – useful for smaller 3D printers.

Upgradable for all performance requirements

Built around the E3D ecosystem, Hemera is adaptable to meet your performance requirements. Print PLA at 600mm³/min with the standard V6 heater block or scale up to print carbon fibre reinforced PEEK at 6600mm³/m at 450C with the SuperVolcano HeaterBlock and NozzleX.

Easily adaptable

The T slot mounting system means you can easily design mounts for your 3D printer to get you set up as quickly as possible.

A system designed to work together

Integration is key to a responsive extrusion system. Hemera is a compact single unit built under one roof by one engineering team. Our parts work together with known tolerances and guaranteed compatibility, so there is no risk of purchasing a component from a 3rd party that doesn’t quite work.

Compatible

Hemera maintains compatibility with the V6, Volcano and SuperVolcano heater blocks and nozzles.

More information

For more detailed information about Hemera’s features please see our blog

Please note:

Whilst Hemera’s custom motor is similar to a NEMA 17, it isn’t a standard NEMA 17. Therefore, Hemera is not compatible with other NEMA 17 motors and you will not be able to swap the motor with either a compact but powerful, slimline motor or other 3rd party motors.

Hemera is only available in 1.75mm.
